Manufacturers often struggle to find rubber materials that mix well, process well, and still perform under pressure. Poor material choices waste time and money.

Powdered NBR is mainly used to modify PVC, to bind and toughen friction materials such as brake linings, and to simplify mixing in oil-resistant rubber compounds, gaskets, and jointing sheets. Powdered nitrile rubber earns its place because the powder can be dosed and blended directly, instead of being cut and milled from a bale.

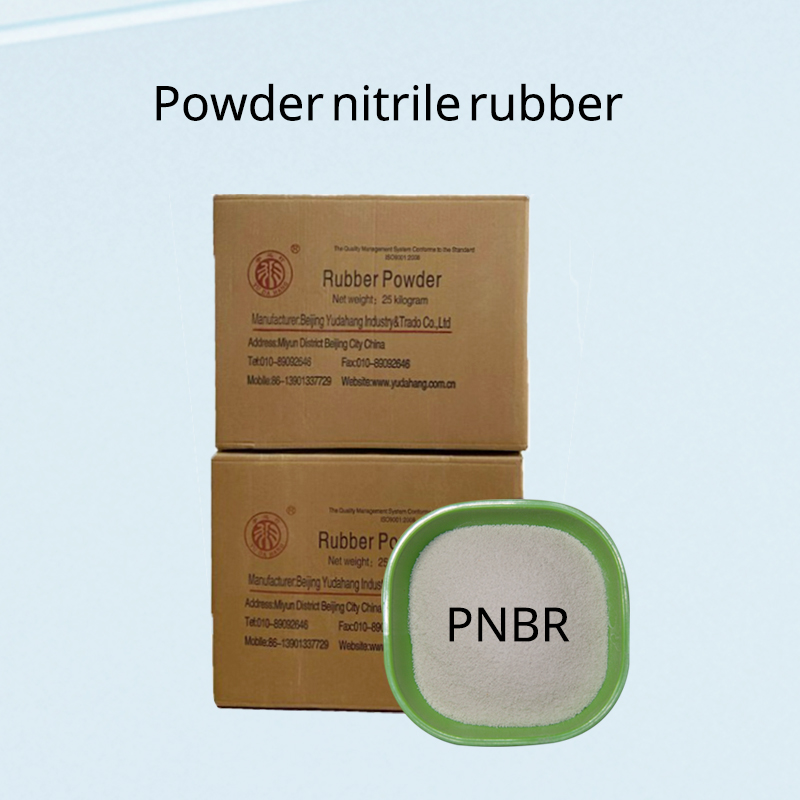

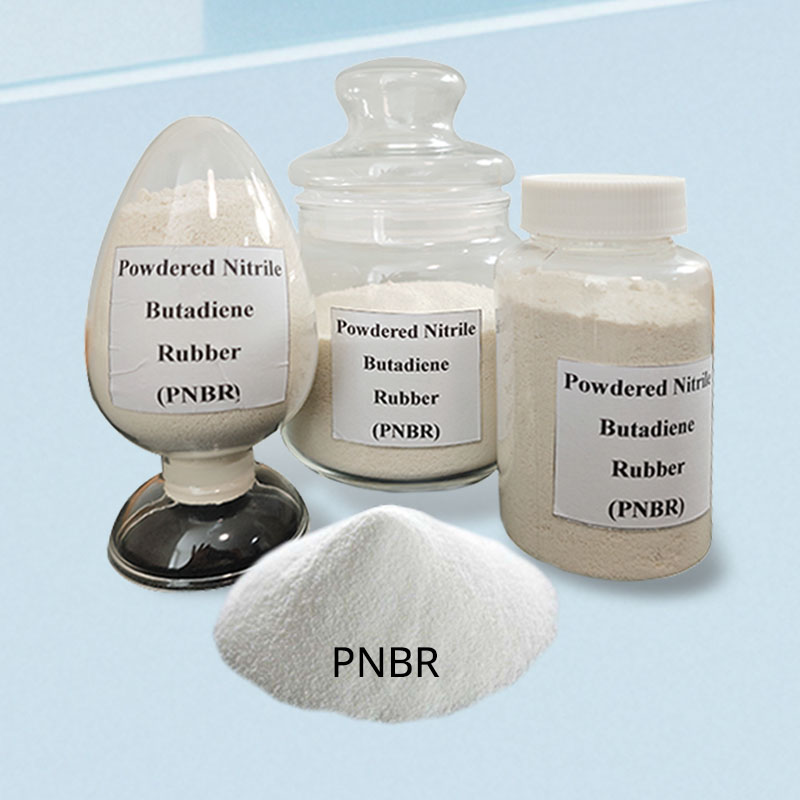

Powdered NBR, often written PNBR, is nitrile rubber supplied as free-flowing particles. Particle size is generally kept below 1 mm, and the grades are coated with a partitioning agent so the powder flows instead of caking into lumps.

I have spent years watching the rubber and polymer materials industry change, and powdered NBR keeps coming up in conversations with manufacturing partners. This guide covers where it is used, how it compares with other rubbers, and how to pick the right grade for your work.

What is Powdered NBR, and How Does It Differ from Bale NBR?

Both come from the same polymer family, but the form they arrive in changes how you handle and mix them.

Powdered NBR is nitrile rubber supplied as free-flowing fine particles, usually written PNBR, while bale NBR is a solid block that has to be cut and softened before it can be mixed.

The chemistry is the same acrylonitrile and butadiene copolymer, so the oil and fuel resistance that nitrile is known for carries over. What changes is the form. Powdered grades are made from nitrile rubber that is processed into fine particles, which are usually coated with a partitioning agent such as calcium carbonate so they do not stick together. Some grades are also cross-linked to a degree, which changes how they behave once they are blended into a plastic or resin. The particles are generally below 1 mm, and the right size depends on the job.

The practical difference shows up on the factory floor. A bale has to be cut, masticated and softened on a mill before it blends, which takes time and energy. A powder can be weighed and dosed directly into a dry blend with PVC, resins or friction material fillers, and it disperses more evenly. That is why powder is the usual choice where the rubber has to be mixed into a powder or resin system.

Powder is not always the better answer. For a standard rubber compound that is already milled and mixed on rubber equipment, a bale can be perfectly suitable. The decision depends on how the material will be mixed and what the end product needs.

If you are choosing between forms, see our powdered nitrile rubber range. Tell us your process and target particle size, and we will suggest a suitable grade.

Where is Powdered NBR Used in Production?

Powdered NBR is used wherever a rubber has to be dosed dry and blended into something else. Three uses account for most of the volume: PVC modification, friction materials, and rubber compounding.

PVC modification.

PVC is brittle on its own and usually needs softeners. NBR adds oil resistance and a rubbery feel, and only NBR in powder form can be mixed into PVC. A typical example is window sealing profiles made from modified soft PVC, and the same approach is used for shoe soles, hoses, and cable compounds. Market analysts rank PVC modification as the largest application segment for NBR powder, at over 45% of the market in 2019. If you are weighing NBR against other modifiers for PVC and other plastics, our guide to choosing a polymer modifier covers the trade-offs.

Friction materials.

In brake pads, brake linings, and clutch or coupling plates, the powder goes into the formulation as a binder and toughener. Finer powders around 0.075–0.15 mm are common here, and pre-crosslinked grades are positioned to improve abrasion resistance and reduce noise in brake liners.

Rubber compounding.

Here the physical form does the work. Powder grades remove the mastication stage in internal and external mixers, so the rubber goes straight into the mix. Compared with bales, there is no cutting or weighing of large chunks, automated systems can meter the powder more precisely, and batches stay more consistent. Plants running automated or semi-automated lines usually see the biggest gain, while smaller shops mixing by hand still save handling time.

Resin toughening.

Powdered NBR is also used to improve impact resistance in plastics such as ABS and phenolic resins. Our guides to the nitrile rubber toughening agent and the PNBR impact modifier explain how this works in practice.

The table below summarizes typical pairings. Treat the particle sizes as typical ranges and confirm them against the supplier's datasheet.

What Drives the Market for Nitrile Butadiene Rubber Powder?

Demand for powdered NBR follows the industries that buy it, so the market is easiest to understand from the buyer’s side.

The market for nitrile butadiene rubber powder is driven mainly by PVC modification, friction materials and resin toughening, all of which need a rubber that can be dosed and blended as a free-flowing powder.

As noted earlier, PVC modification has been the largest segment, at over 45% of the market in 2019. Friction material makers use fine powder grades because the particles mix evenly with fillers and resins. Plastic and resin compounders use it to improve toughness and impact behaviour, and rubber compounders use it where easy dosing saves time. The common reason behind all of these is practical: a powder skips the cutting and mastication that a bale needs, so it blends faster and more evenly.

Market size and growth figures differ a lot between reports, because each one defines the segments and regions differently, so check the date and the scope before relying on a number. For buyers, the practical points matter more than a headline figure: stable supply, grade options and sample support.

If you are comparing suppliers, see our powdered nitrile rubber range, then tell us your application and particle size needs.

How does Powdered NBR Compare with EPDM and Silicone in Seals and Gaskets?

Powder form changes how a compound is made, not how the finished seal performs. Oil, heat, and ozone resistance come from the nitrile polymer itself, so the fair comparison is NBR against EPDM and silicone.

Comparative material data consistently place nitrile rubber at or near the top for petroleum oil and fuel resistance among common elastomers, which is why it remains the default choice for hydraulic seals, fuel-system components, and oil gaskets. Suppliers also list jointing sheets and gaskets among the end uses for their powdered grades.

Nitrile is still not right for every sealing job. EPDM has excellent ozone and weathering resistance but essentially no oil resistance, while silicone handles a very wide temperature range but also performs poorly against petroleum-based fluids. The seal's job decides the right material, not habit.

*Approximate values for general-purpose compounds; they vary with formulation, so check the compound's own data sheet.

I always tell customers to test against their real working conditions. A spec sheet gives a starting point, but the actual application decides the winner.

Which Powdered NBR Grade is Best for Your Application?

The best grade is the one that matches your formulation, processing method, and end use. There is no universal ranking, and a grade built for PVC modification may not suit a general industrial gasket. These are the factors that separate one grade from another:

• Linear vs. cross-linked: linear and cross-linked grades serve different jobs. Linear powders are mainly used in seals and gaskets, while cross-linked grades are mainly used in resin modification and friction materials.
• Acrylonitrile (ACN) content: a higher level improves oil and fuel resistance but reduces low-temperature flexibility.
• Mooney viscosity: affects how the powder processes and how it behaves at high loadings.
• Particle size: finer powders suit friction materials, while PVC modification commonly uses coarser powder around 0.3–0.7 mm.
• Partitioning agent: powders are coated, for example with calcium carbonate, to stay free-flowing. Check that it is compatible with your formulation.

Ask the supplier for a datasheet that states acrylonitrile content, Mooney viscosity, particle size, and partitioning agent, then run a small batch before a full production run. A trial confirms how the grade behaves in your mixing equipment and catches compatibility issues before they become costly problems on the line. If your compound does not need oil resistance, it is worth comparing powdered SBR as well, and our PSBR buyer's guide covers that option.

Conclusion

Powdered NBR is used mainly for PVC modification, friction materials, and oil-resistant rubber compounds, and the right grade depends on your formulation and process. At Yudahang, we aim to turn this material knowledge into reliable sourcing choices, and you can review our NBR powder grades and request technical data for your application.
